Resin-insulated dry-type power transformer
SC(B)10/11/13 series resin-insulated dry-type power transformers. Performance meets GB1094.11-2007 and GB/T10228-2015 standards. This product features low losses, ...
- Product Description
-
Resin-insulated dry-type power transformer Overview
Product Introduction
SC(B)10/11/13 series resin-insulated dry-type power transformers. Performance meets GB1094.11-2007 and GB/T10228-2015 standards. This product features low loss, small size, light weight, low noise, moisture resistance, dirt resistance, crack resistance, impact resistance, flame retardancy, strong overload capacity, and low partial discharge (partial discharge less than 10PC). This product can be widely used in power transmission and transformation systems, hotels, restaurants, high-rise buildings, commercial centers, stadiums, petrochemical plants, subways, stations, airports, offshore platforms, etc. It is particularly suitable for load centers and occasions with special fire prevention requirements.

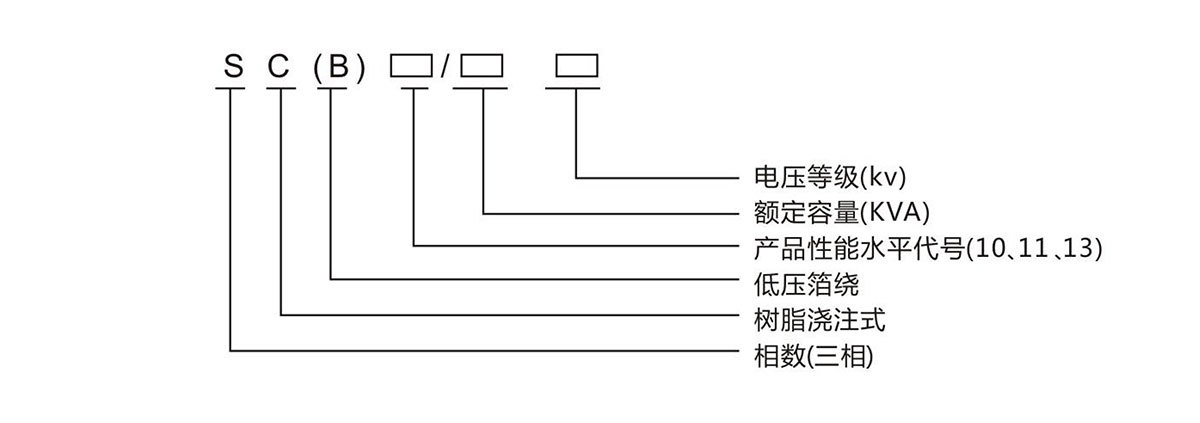

Model Description
Operating Conditions
Altitude ≤1000m, ambient temperature: -25°C～+40°C. Indoor type self-air-cooled and forced-air-cooled transformers must ensure good ventilation. If the transformer is installed in a basement or other environment with poor ventilation, additional heat dissipation and ventilation devices must be added. Protection grades include IP00, IP20, and IP23. When the altitude is >1000 meters, users should specify the altitude, and the design will adjust the temperature rise parameters.
Product Features
★Safe, flame-retardant, pollution-free, and can be directly installed in the load center
★Maintenance-free, easy installation, and low overall operating costs.
★Good moisture resistance, can operate normally at 100% humidity.
★Low loss, low partial discharge, low noise, strong heat dissipation, and can operate at 130% rated load under forced-air cooling.
★Equipped with a complete temperature protection control system to provide reliable protection for safe operation of the transformer.
★High reliability. According to operational research on products already in operation, the reliability indicators of the products have reached the internationally advanced level.
-
High-efficiency energy conversion design
The power transformer adopts high-magnetic silicon steel sheets and optimized winding structure to achieve an energy conversion efficiency of more than 98.5%, and the no-load loss is 30% lower than that of traditional products. The specially designed cooling channel keeps the temperature rise within 45K to ensure continuous and stable operation. -
Intelligent monitoring system
The transformer with integrated IoT technology is equipped with 12 real-time monitoring points, which can accurately collect key parameters such as temperature, oil level, vibration, etc., and realize abnormal warning through the cloud platform, and the fault response time is shortened to within 15 minutes. -
Environmentally friendly insulation solution
The new plant ester insulating oil is completely biodegradable, with a flammability of more than 320℃. Combined with specially treated insulating paper, the environmental protection level of the transformer is raised to the highest standard, and the service life is extended to 30 years.
-
Product Inquiry
Strive to lead in efficient, green power distribution and transmission.
