Pre-assembled substation
Altitude: ≤1000m. Wind speed: ≤34m/S (≤700pa). Ambient temperature: Maximum temperature +40°C, minimum temperature -35°C.
- Product Description
-
Pre-assembled substation Overview
Product Introduction
Pre-assembled substations (also known as European-style box substations) comply with GB/T17467 and IEC1330 standards. They are flexible and convenient to install, have low losses and noise, and strong short-circuit and overload capabilities. Suitable for commercial centers, residential areas, industrial and mining enterprises, hospitals, schools, airports, stations, ports, subways, etc. Available in "eye" type (YBM) and "quality" type (YBP) layouts.

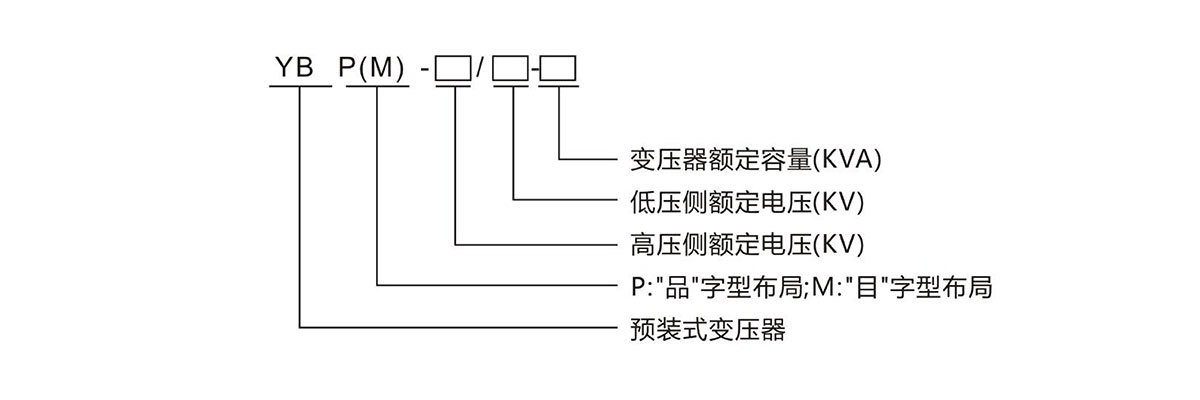

Model Description
Conditions of Use
★Altitude: ≤1000m.
★Wind speed: ≤34m/S (not exceeding 700pa).
★Ambient temperature: Maximum temperature +40°C, minimum temperature -35°C.
★Relative humidity: Daily average not exceeding 95%, monthly average not exceeding 95%.
★Seismic resistance: Horizontal acceleration not exceeding 0.4m/s², vertical acceleration not exceeding 0.15mm/s².
★Installation site inclination not exceeding 3°.
★Installation environment: Installed in places without fire, explosion hazards, serious pollution, chemical corrosion, or severe vibration.
★For conditions exceeding the above specifications, please consult our company.
★Small size, compact structure, easy installation.
Product Features
★The substation structure is arranged in an "eye" or "quality" shape.
★The product housing material uses aluminum alloy plates, stainless steel plates, composite plates, glass fiber reinforced cement boards, etc.
★The substation base is made of galvanized channel steel or cement, with strong corrosion resistance and sufficient mechanical strength.
★The box top cover adopts a double-layer structure, with good heat insulation, radiation protection, and ventilation effects.
★The compartments of the substation are separated by iron plates to form independent compartments. Each compartment is equipped with lighting facilities. The top of the transformer is equipped with an automatic exhaust device to regulate the temperature of the transformer room.
★The color of the box transformer is flexible and can be coordinated with the surrounding environment.
-
High-efficiency energy conversion design
The power transformer adopts high-magnetic silicon steel sheets and optimized winding structure to achieve an energy conversion efficiency of more than 98.5%, and the no-load loss is 30% lower than that of traditional products. The specially designed cooling channel keeps the temperature rise within 45K to ensure continuous and stable operation. -
Intelligent monitoring system
The transformer with integrated IoT technology is equipped with 12 real-time monitoring points, which can accurately collect key parameters such as temperature, oil level, vibration, etc., and realize abnormal warning through the cloud platform, and the fault response time is shortened to within 15 minutes. -
Environmentally friendly insulation solution
The new plant ester insulating oil is completely biodegradable, with a flammability of more than 320℃. Combined with specially treated insulating paper, the environmental protection level of the transformer is raised to the highest standard, and the service life is extended to 30 years.
-
